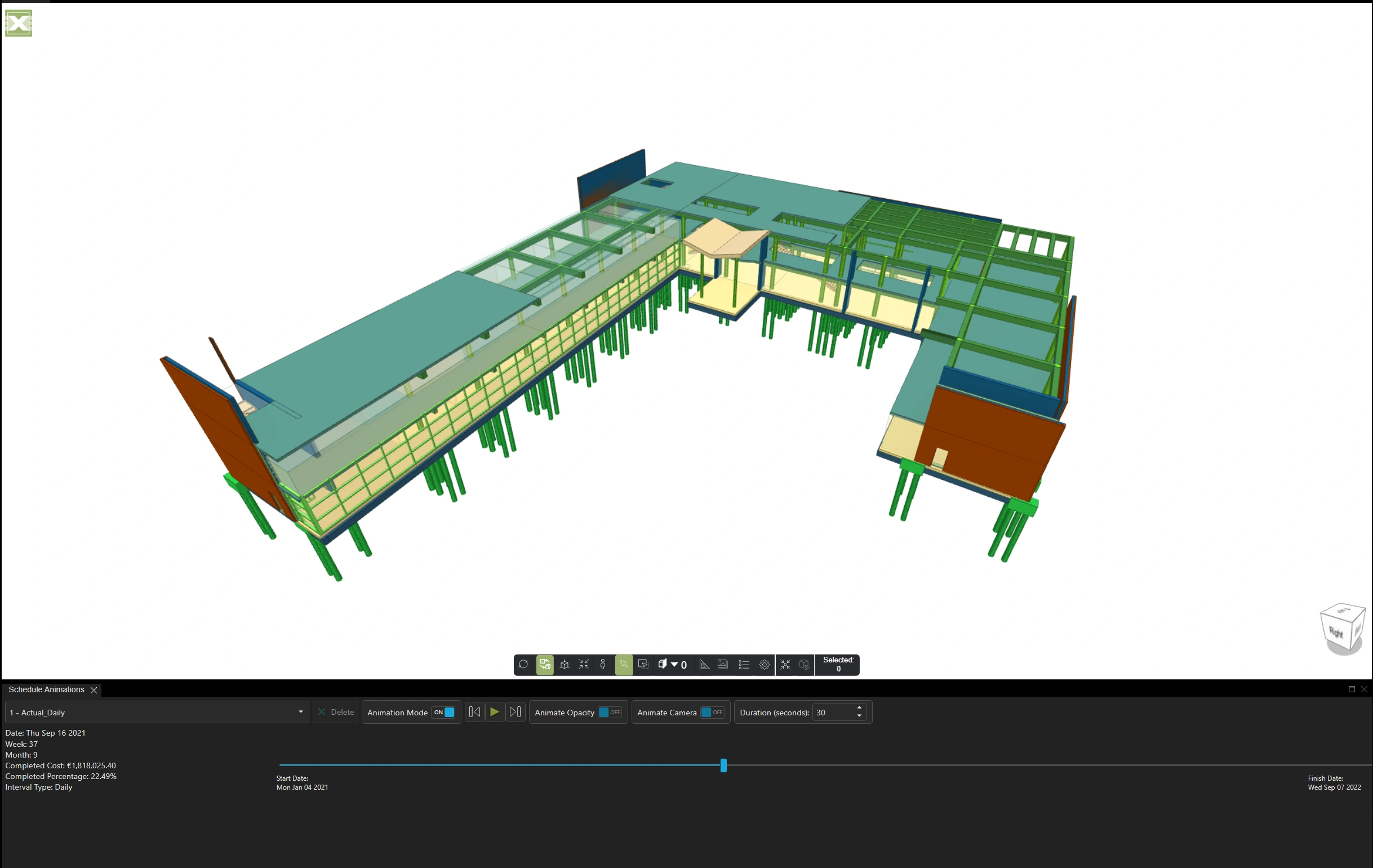

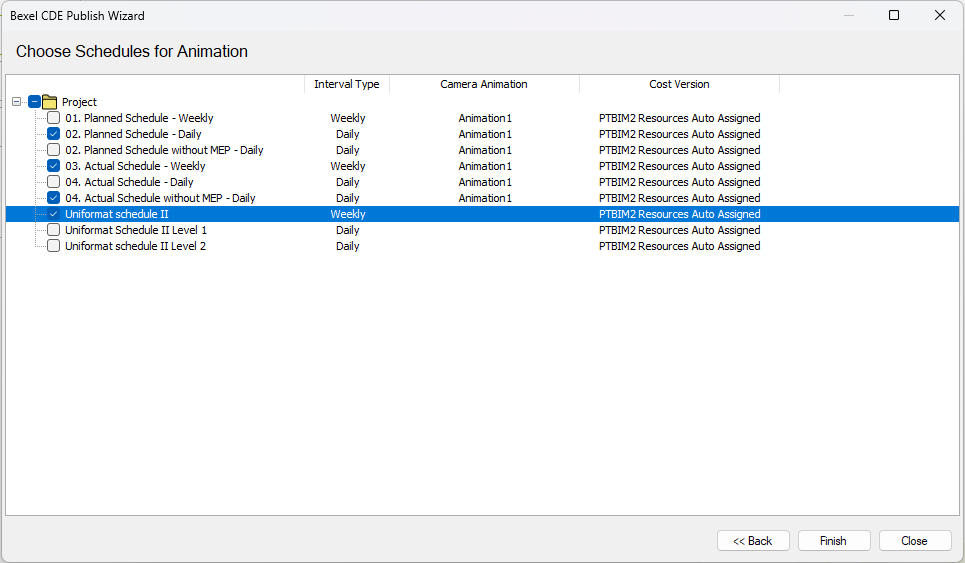

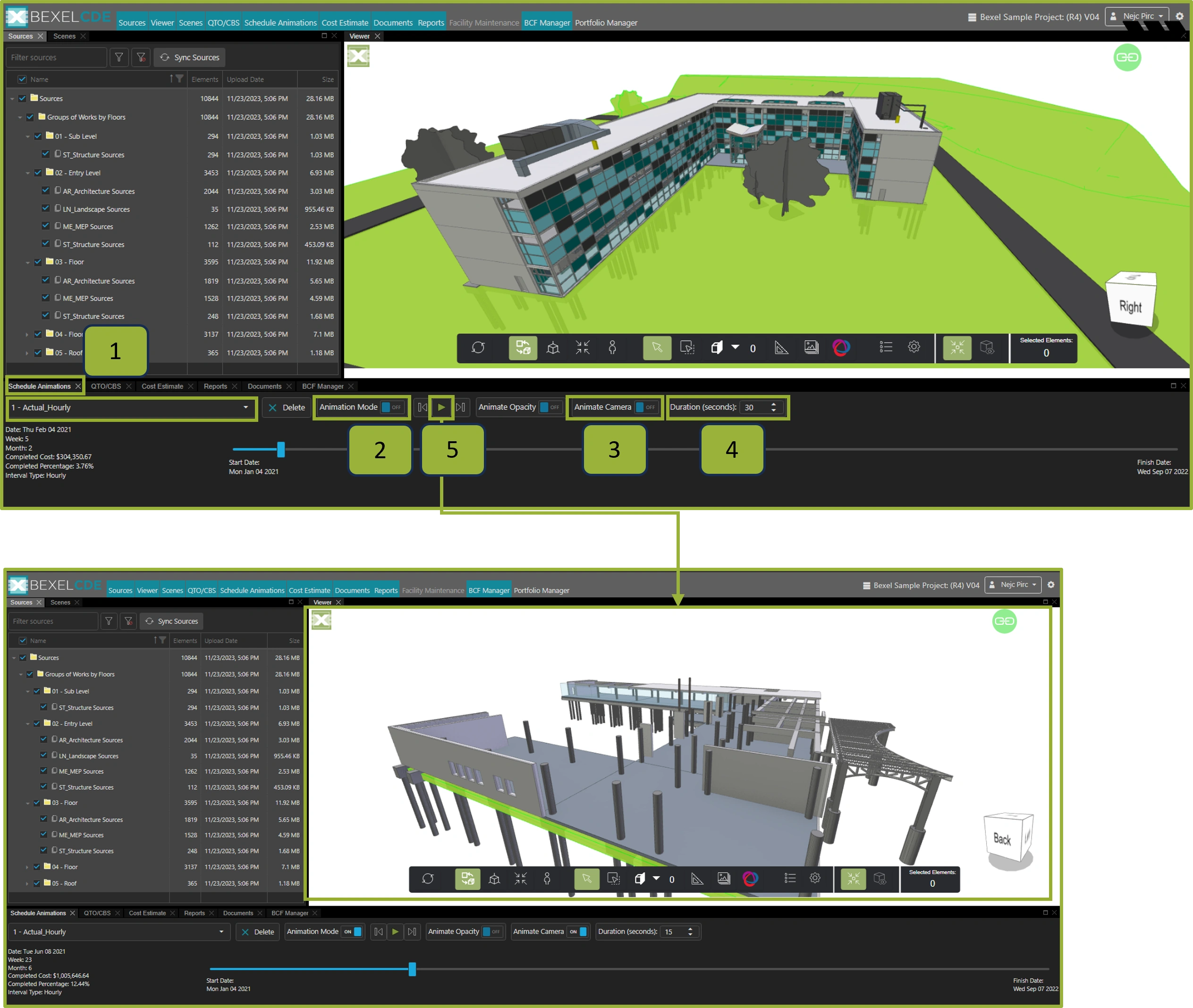

Schedule Animation Estimated reading: 1 minute The Schedule Animations module allows accessing and analyzing construction animations both at the model level and for specific subsets of loaded sources. These animations can also be viewed with any coloring scheme. For example, simulations for only underground work, facade tasks, or MEP activities can be reviewed. Elements can be color-coded based on the actual cost performance index, enhancing analysis capabilities. Camera movement can be defined within BEXEL Manager and published to BEXEL CDE. Additionally, there is a possibility of adjusting the animation duration directly within BEXEL CDE. 1. Activate the Schedule Animations Module. Choose an animation from the drop-down menu2. Turn ON Animation mode to set up the animation start scene3. Turn the Animate Camera button ON to see the camera moving during animation4. Set up Duration (recommended duration is 15 seconds)5. Click Play to start animation Note If model elements are color-coded based on the selected CBS/QTO, Clash Detection, or Takt Planner, these colors will also be visible in the schedule animation. Note The Interval Type and animation camera settings for the Schedule Animation module are defined during the Export to CDE process in BEXEL Manager.
